Purpose-built to meet the most demanding excavation needs.
American made and designed to dig more precisely. More Productively. To be as reliable and durable as the men and women who use them.
TRUVAC. Built to Deliver More.

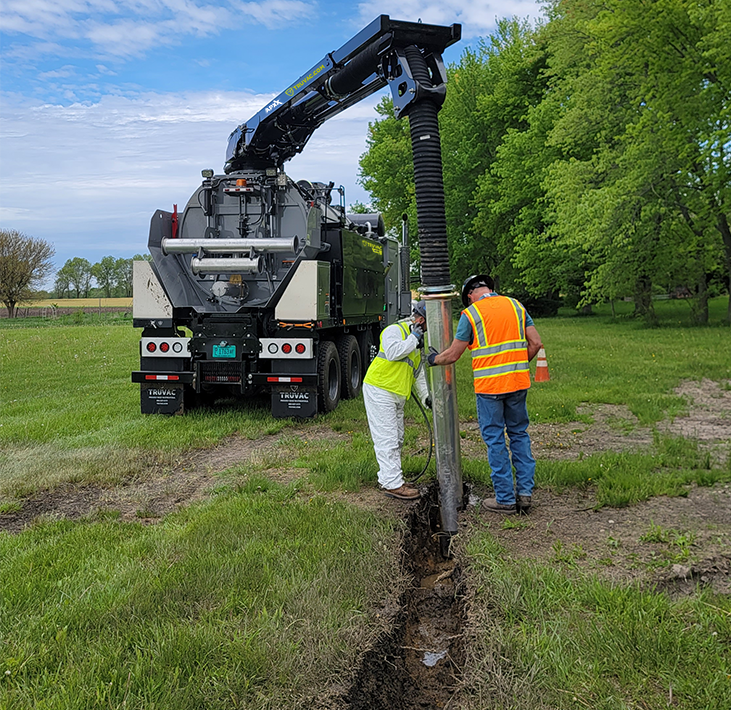

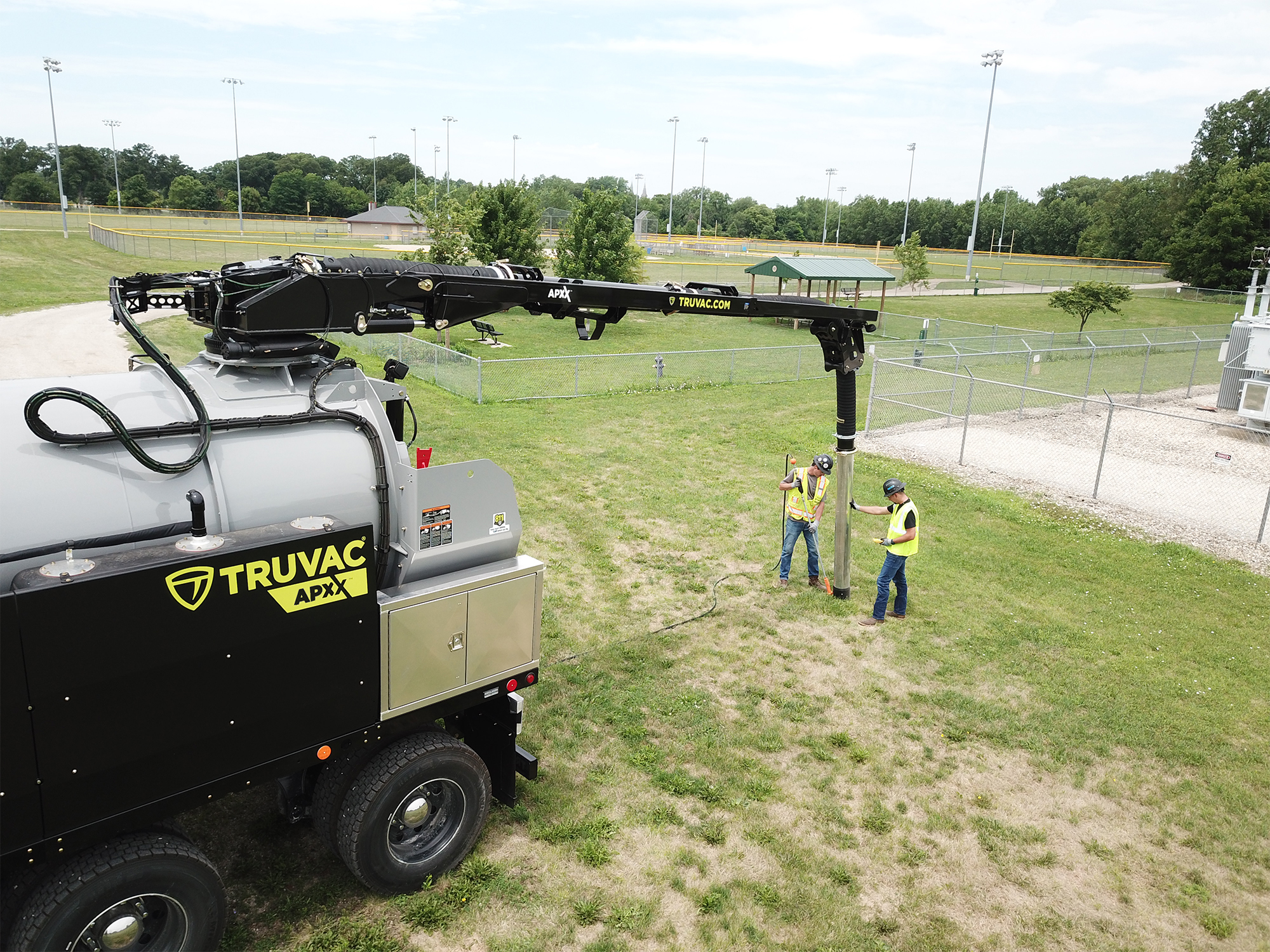

APXX is the peak performer of heavy-duty vacuum excavators. Built to operate in the most rugged climates and environments, it reaches new heights by delivering a combination of standard features that make this machine rise to a class of its own.
Designed with multiple axle options, this excavator is positioned to maximize legal payload and make time on the job more profitable. Operator comfort is second to none, thanks to the standard heated double-walled storage cabinet that provides operators a break and protection from the elements while supporting productivity in cold climates. The quiet operation of the Venturi injection system on the Hibon blower provides state-of-the-art sound reduction technology for operators as they perform vacuum excavation applications.
• Hydro Excavation
• Air Excavation
• Potholing/Daylighting to locate underground utilities
• Keyholing for HDD installations
• Slot Trenching
• Cleanup of flood water, drilling spoils, catch basins, and construction sites
• Valve box repairs
• Removal of non-hazardous liquids
• 5,250 cfm blower
• Hibon 8702-VS Blower
• Classic style control system
• Large heated cross-over water cabinet with tool storage
• Choice of chassis axle configurations
• Debris body vibrator
• 3/4 opening rear door
• 50⁰ debris body dump angle
| • Industrial | • Railroad |
| • Gas industry | • Airports |
| • Power industry | • Oil fields |
| • Military | • Tunneling |
| • Environmental | • Utilities |
| • Telecommunications | • Nuclear |
| • Construction | • Landscaping |
| • Water & sewer systems | • Road Construction |

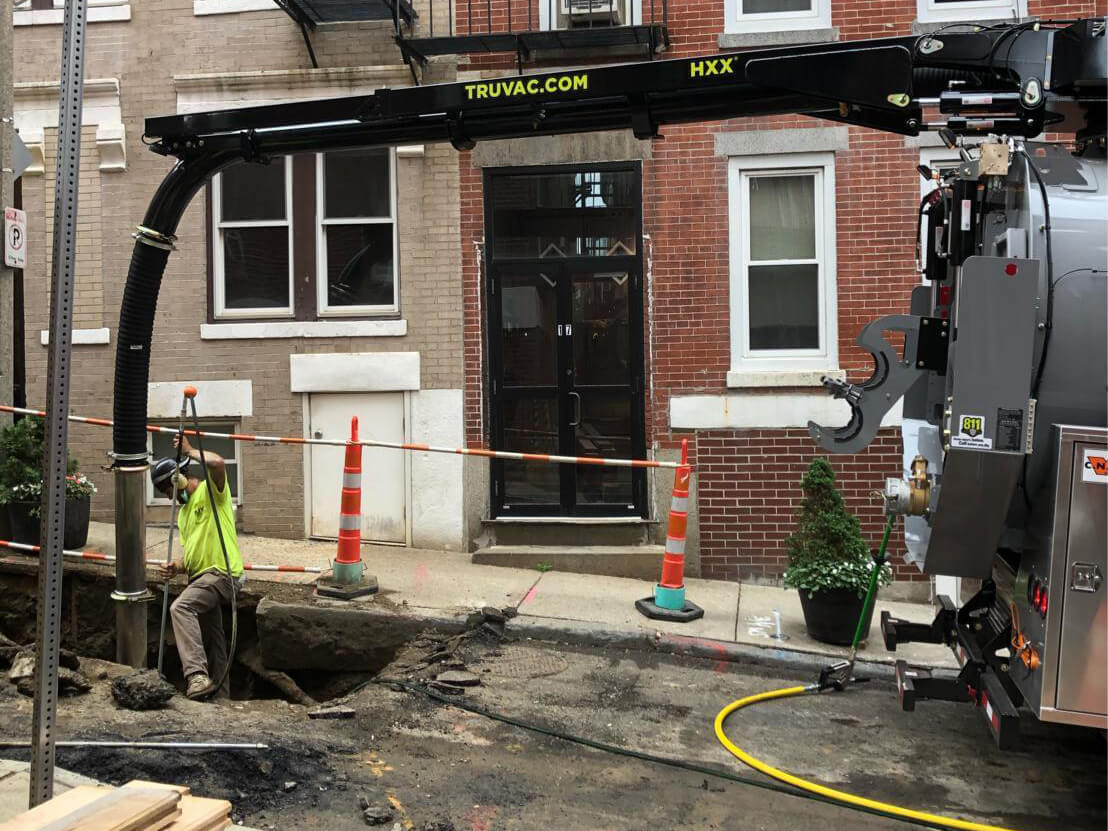

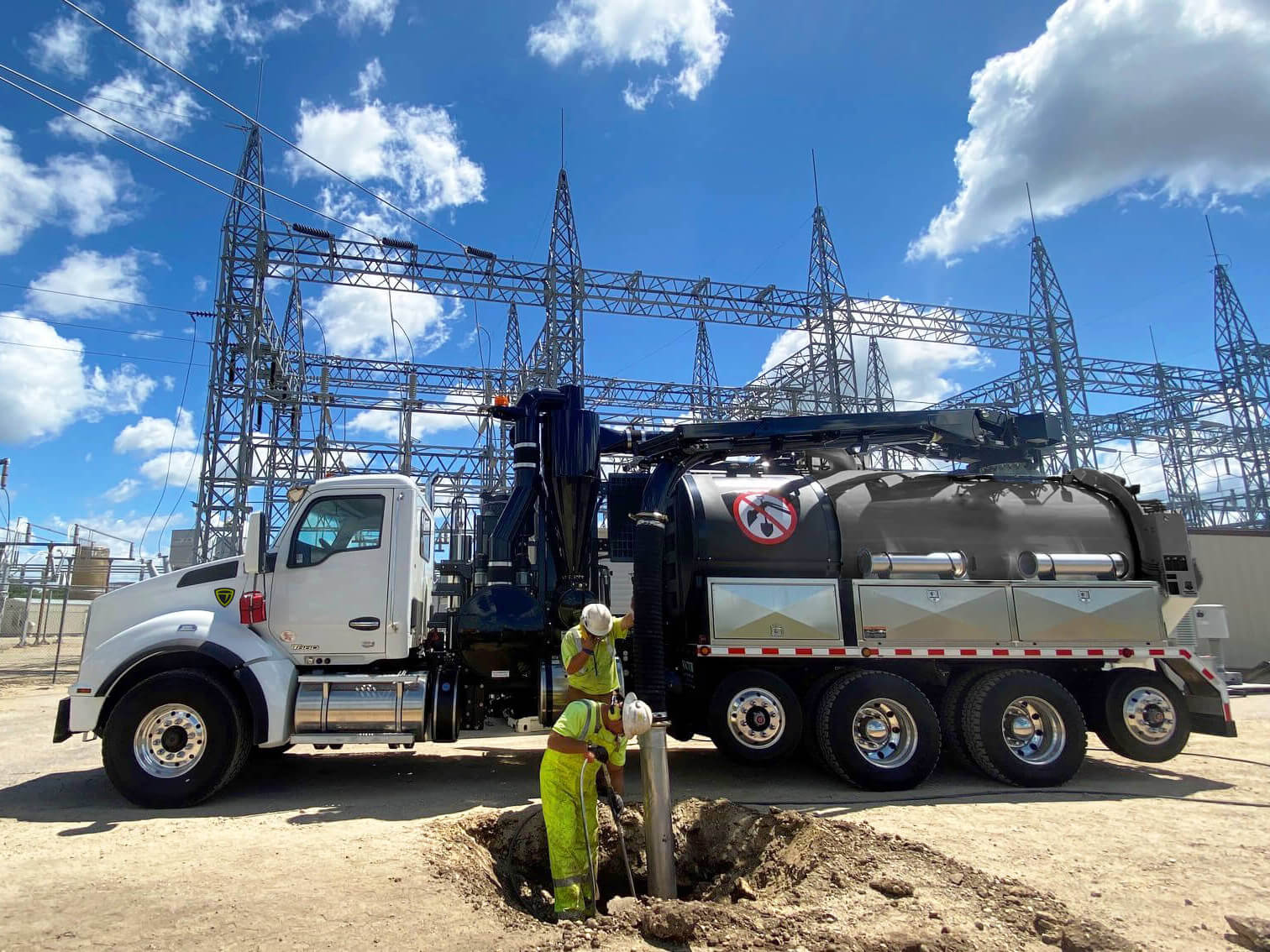

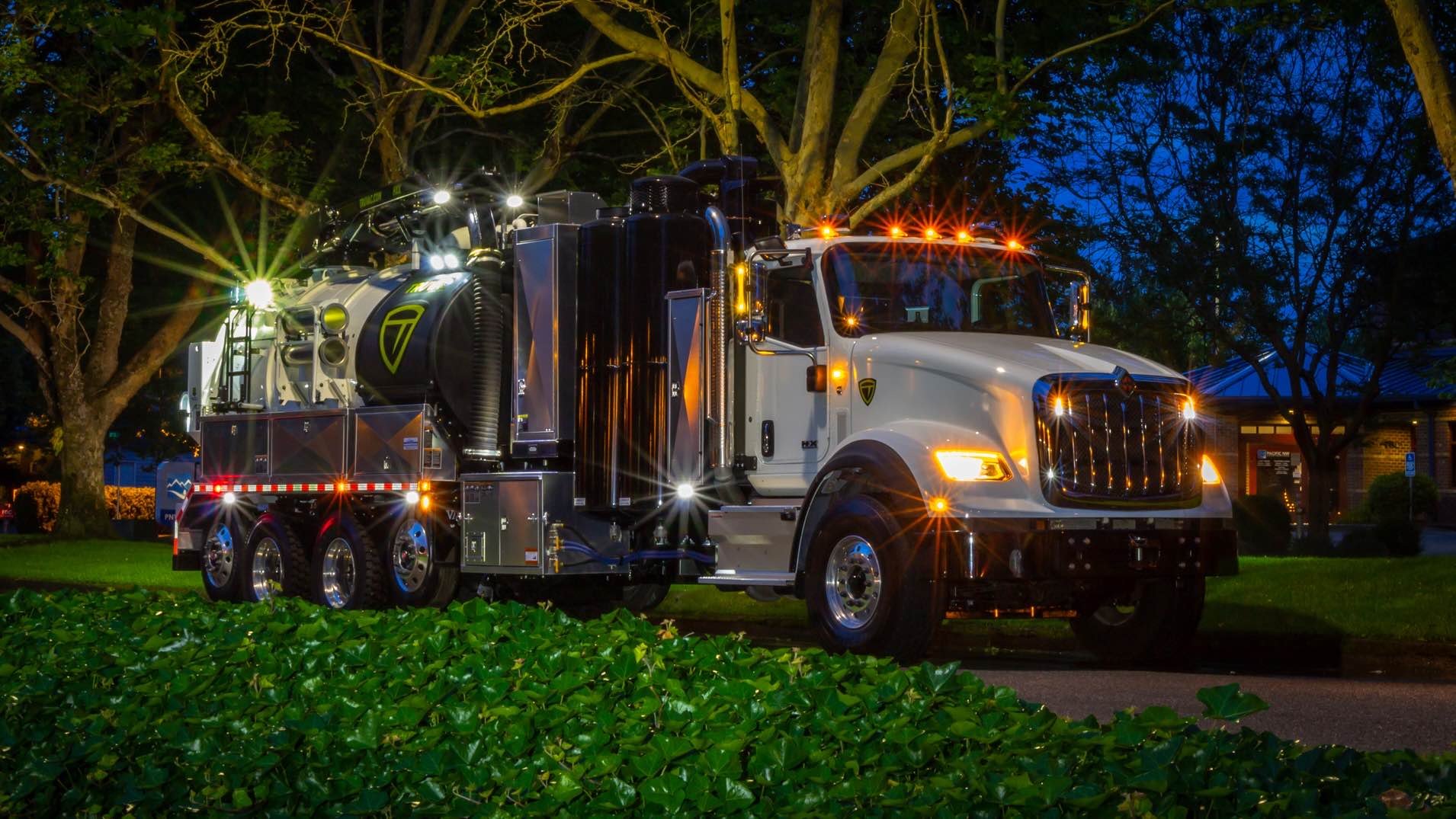

This full-sized beast was developed from the ground up—literally. The HXX® is the result of years of vacuum excavation research, customer input, testing and industry experience.
Its many features include:
Found on utility, municipal and public works, oil and gas, construction, and site preparation job sites across North America, the Truvac HXX vacuum excavator provides a safer, easy-to-use alternative for potholing, waterline repair, slot trenching, directional drilling, sign and pole installation, pipe and line repair and installation, and other large-volume excavation.
BOOM
8" vacuum system, extendable or telescopic to 22' reach, 320° rotation
CHASSIS
Multiple options
DEBRIS BODY
50° tilting 12 yd3 or 15 yd3 debris body
VACUUM SYSTEM
Positive displacement blower options rated at 18 in-HG/4,460 cfm, 28 in-HG/5,250 cfm, or 28 in-HG/6,176 cfm, also available with two-stage centrifugal compressor
WATER SYSTEM
10 or 20 gpm at 3000 psi water pump options with DigRight® technology

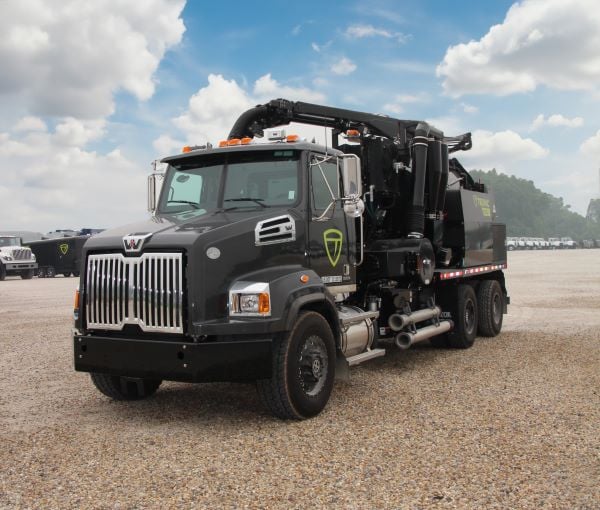

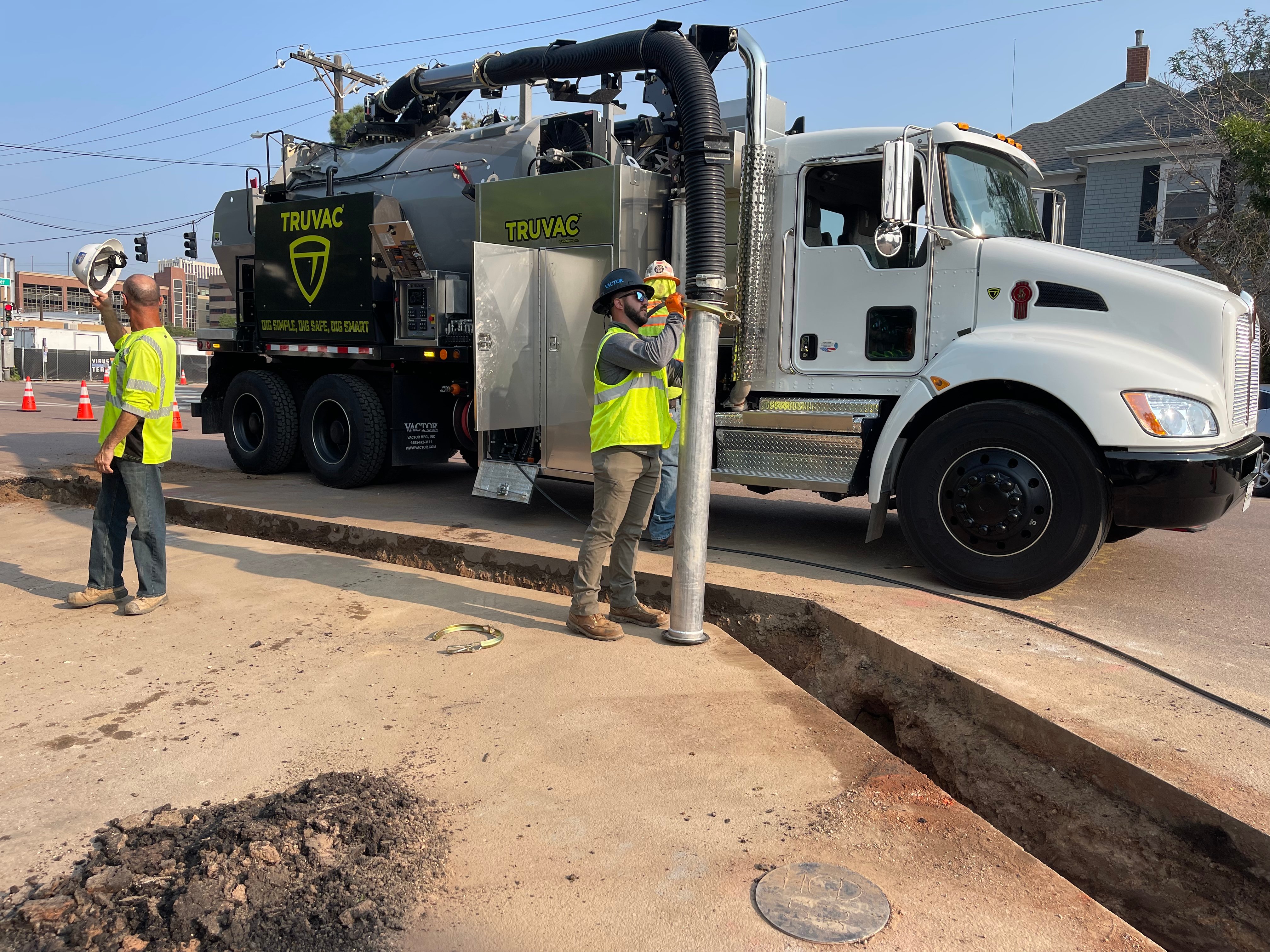

Meet the TRUVAC FLXX, a flexible vac truck providing you maximum payload, performance, and productivity in a smaller and more maneuverable package. TRUVAC FLXX is the safe-digging machine that is perfect for a wide range of applications that simply are not as suitable, or as profitable, for a full-size truck.
The quality of our equipment is only matched by the service and support after the sale. Our experts are committed to helping you get the most from your vac truck so you can focus on getting the job done right. Parts and service centers at the ready to keep you up and running. Expert consultation and training for optimal equipment use, safety and maintenance. Cloud-based access 24/7 to technical information, parts bulletins and warranty information.
Maximize payload, performance, and productivity in jobs requiring non-destructive digging. Utilizing either air or water, the FLXX drives profitability for every job.
Flexible build configurations available to meet specific needs.
BOOM
6" vacuum system, 22’ boom reach, 340º rotation
CHASSIS
Class 8
DEBRIS BODY
10 yd3, 50º tilting
VACUUM SYSTEM
Positive displacement hydrostatic-driven blower rated at 16” HG and 3200 CFM
WATER SYSTEM
10 gpm at 3000 psi water pump with DigRight® technology

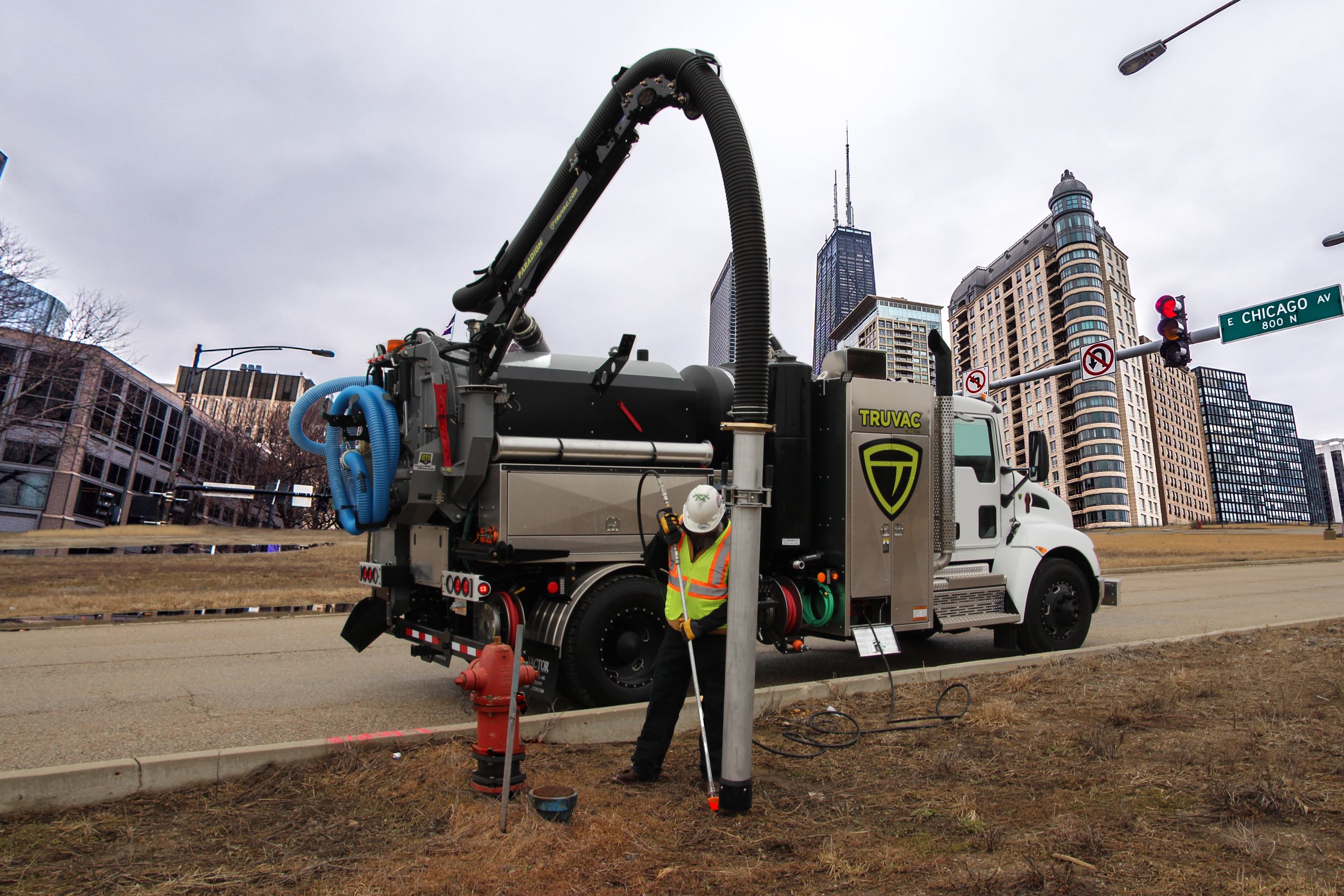

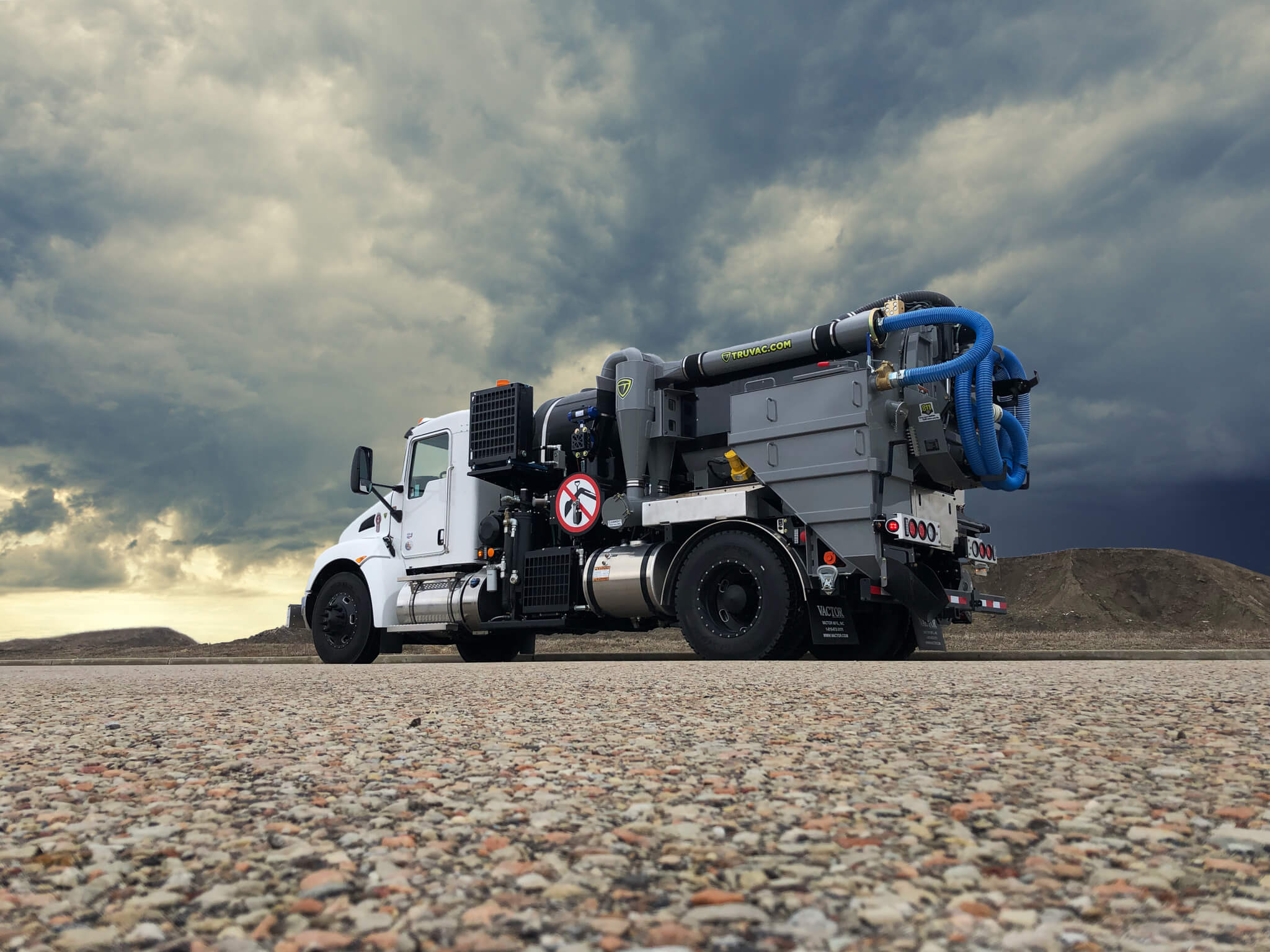

The Paradigm® lets you excavate around utilities with the utmost safety and efficiency. Paradigm is customer- inspired, built to satisfy the most stringent safe-digging requirements, and backed by the TRUVAC® commitment to quality.
Its many features include:
BOOM
6" vacuum system, extendable to 14' 6" reach, 210° rotation
CHASSIS
Class 6 non CDL or Class 7 chassis options
DEBRIS BODY
50° tilting 675 gallon debris body
VACUUM SYSTEM
Positive displacement blower rated at 15" Hg and 2200 cfm
WATER SYSTEM
8 gpm at 2500 psi water pump with DigRight® technology

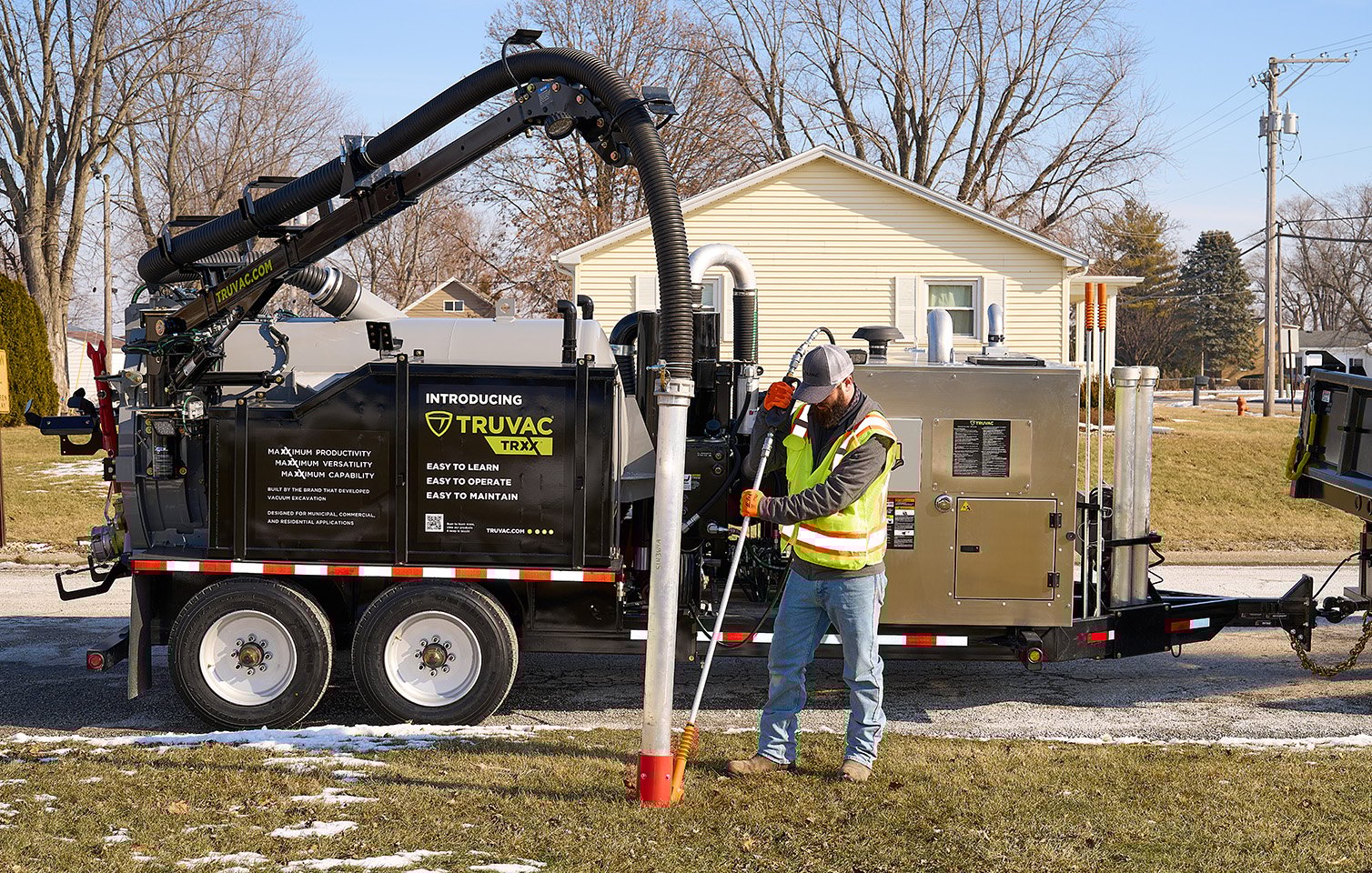

The TRUVAC TRXX vacuum excavator is a compact trailer with the power and features required at a variety of jobsites to perform a wide range of tasks. This non-destructive hydro excavation trailer is portable and versatile, ideal for a broad range of applications.
Built by the brand that developed vacuum excavation. Designed for municipal, commercial,
and residential applications. TRUVAC TRXX brings safe digging to a new range of applications such as landscaping and plumbing that simply are not as suitable, or as profitable, for a full-size truck.
UNDERGROUND UTILITY APPLICATIONS
• Potholing or daylighting to locate and verify underground utility locations
• Keyholing
• Horizontal directional drilling (HDD) mud removal
• Slot trenching for new underground infrastructure installation
• Non-destructive digging
• Environmental cleanup
• Construction site cleanup
LANDSCAPING APPLICATIONS
• Planting trees
• Setting fence posts
• Removing gravel
• Removing mulch
PLUMBING APPLICATIONS
• Uncovering cleanout ports
• Installing cleanout port
• Septic tank lid uncovering
• Waterline repairs
• Service repair and replacement
• Lead water pipe replacement
• Emergency digs
The quality of our equipment is only matched by the service and support after the sale. Our experts are committed to helping you get the most from your vac equipment so you can focus on getting the job done right. Parts and service centers at the ready to keep you up and running. Expert consultation and training for optimal equipment use, safety and maintenance. Cloud-based access 24/7 to technical information, parts bulletins and warranty information.
| Specifications for the TRXX 500 and TRXX 800 |
| Performance Specifications | TRXX 500 | TRXX 800 |
|---|---|---|
| Debris Capacity | 500 gallon/ 1800 liters | 800 gallon / 3028 liters |
| Water Capacity (standard) | 200 gallons / 757 liters | 400 gallons / 1514 liters |
| Engine | 49-64 HP Kubota | 49-64 HP Kubota |
| Blower | 1000 CFM | 1000 CFM |
| Vacuum Rating | 15" Hg | 15" Hg |
| Water Pump Volume | 5 GPM / 19 LPM | 5 GPM / 19 LPM |
| Water Pump Pressure | 3000 psi / 207 BAR | 3000 psi / 207 BAR |
| Length | 243 inches / 6.17 meters | 269 inches / 6.83 meters |
| Width | 98 inches / 2.49 meters | 98 inches / 2.49 meters |
| Height | 103 inches / 2.62 meters | 103 inches / 2.62 meters |
| Weight (empty) | 9,000 lbs / 4733 kg | 10,000 lbs / 4536 kg |
| Trailer GVWR | 14,000 lbs / 6350 kg | 20,000 lbs / 9072 kg |
