Maimum productivity, versatility and capability in our trailer mounted vacuum excavators.

TRUVAC_TRXX_Lockup_Vertical_RGB-green



TRUVAC_TRXX_horizontal_RGB-green-cropped-lowres

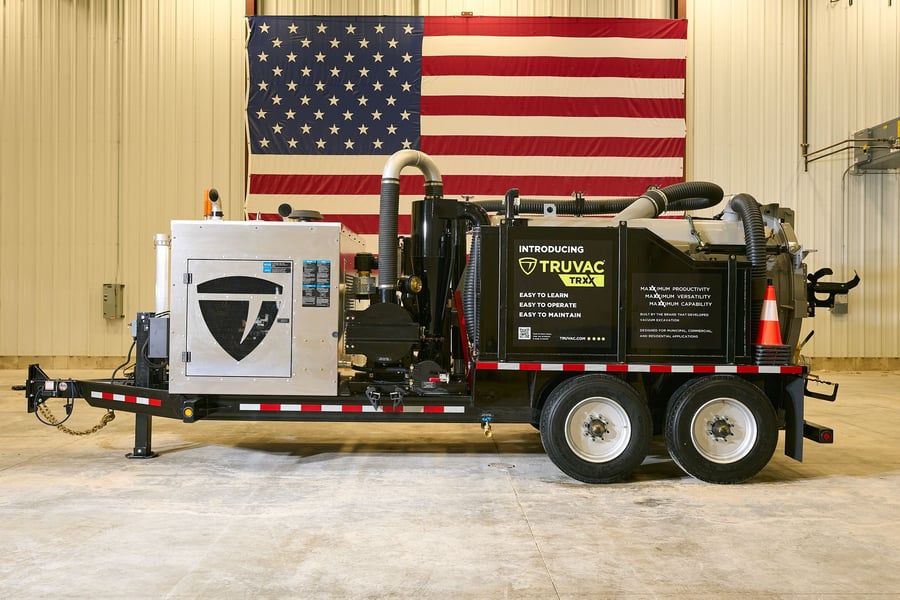

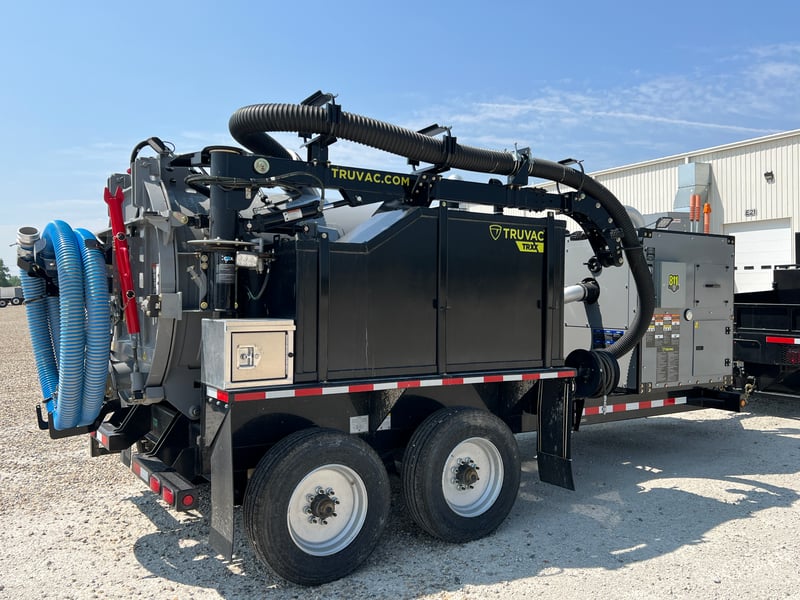

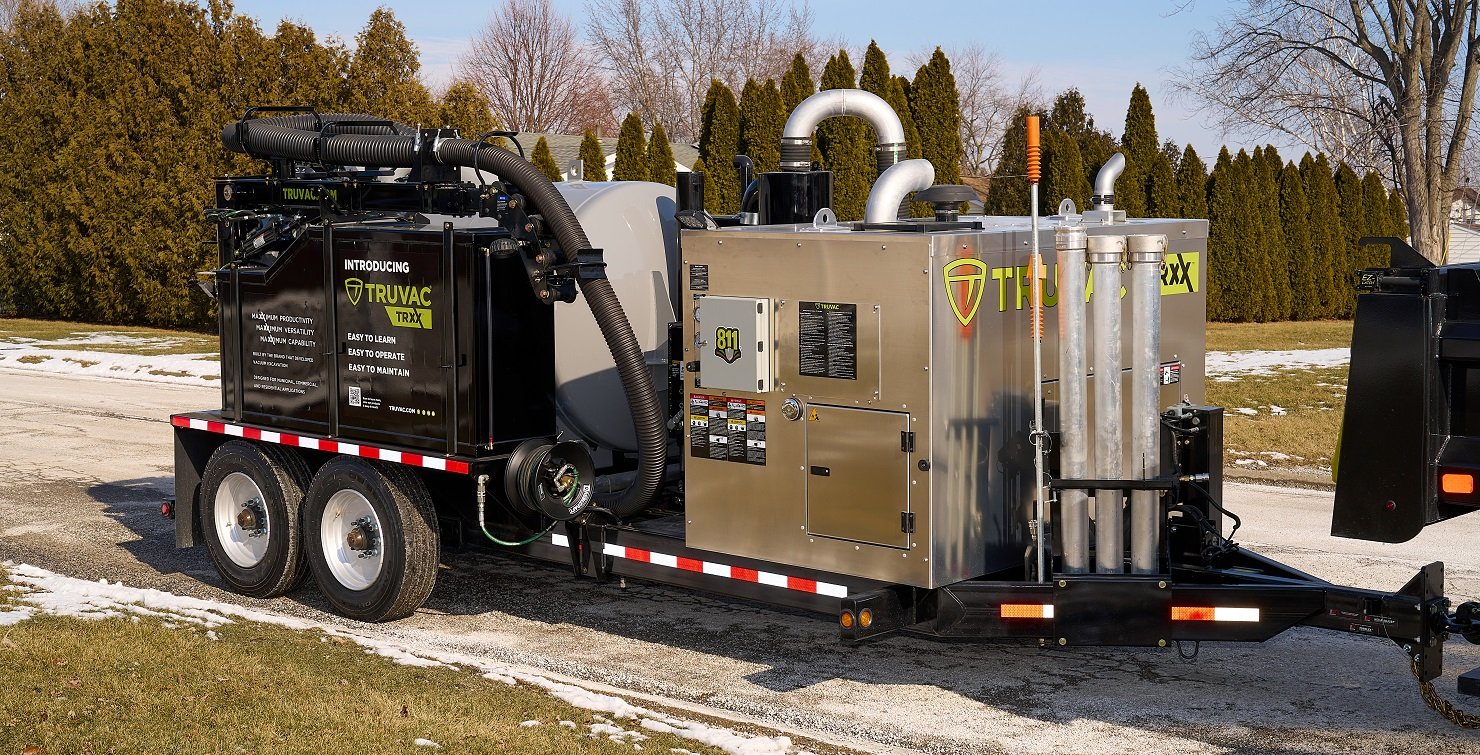

Hydro Excavation Trailer

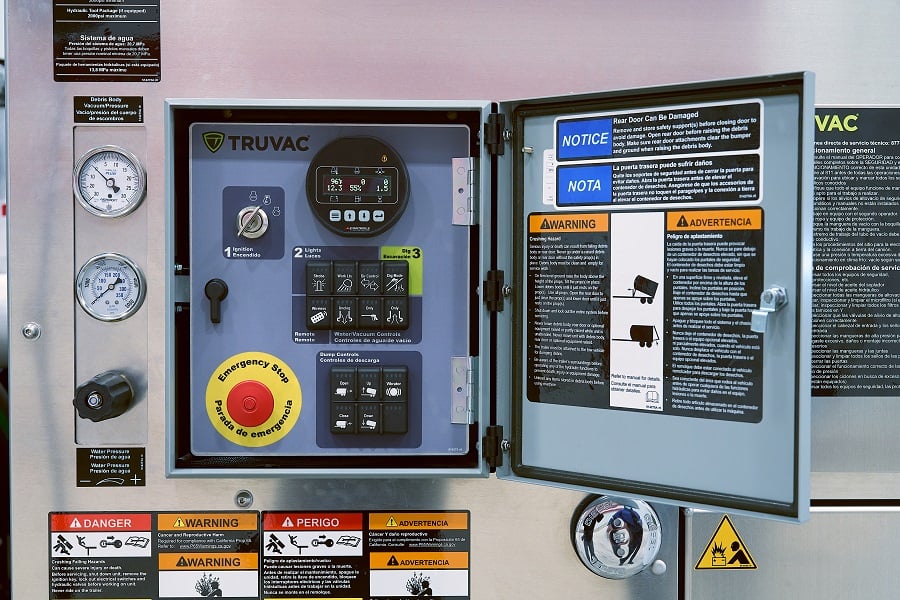

EASY TO LEARN.   EASY TO OPERATE.   EASY TO MAINTAIN.

TRXX 2022 WEB VIDEO 30 sec FINAL



The TRUVAC TRXX vacuum excavator is a compact trailer with the power and features required at a variety of jobsites to perform a wide range of tasks. This non-destructive hydro excavation trailer is portable and versatile, ideal for a broad range of applications.

Built by the brand that developed vacuum excavation. Designed for municipal, commercial,
and residential applications. TRUVAC TRXX brings safe-digging to a new range of applications such as landscaping and plumbing that simply are not as suitable, or as profitable, for a full-size truck.

VERSATILITY IN THE FIELD FOR WIDE VARIETY OF APPLICATIONS

UNDERGROUND UTILITY APPLICATIONS

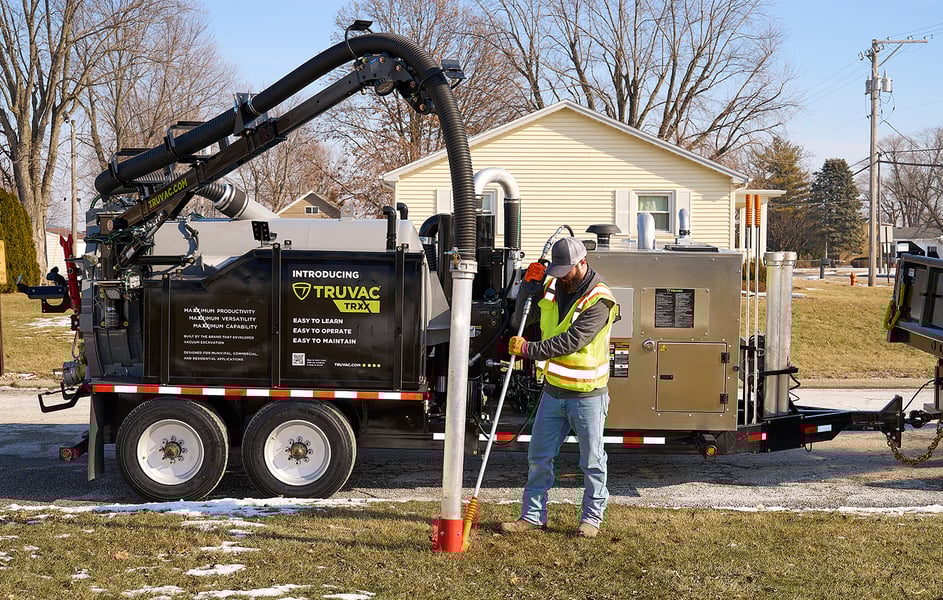

•   Potholing or daylighting to locate and verify underground utility locations
•   Keyholing
•   Horizontal directional drilling (HDD) mud removal
•   Slot trenching for new underground infrastructure installation
•   Non-destructive digging
•   Environmental cleanup
•   Construction site cleanup

LANDSCAPING APPLICATIONS
•   Planting trees
•   Setting fence posts
•   Removing gravel
•   Removing mulch

PLUMBING APPLICATIONS
•   Uncovering cleanout ports
•   Installing cleanout port
•   Septic tank lid uncovering
•   Waterline repairs
•   Service repair and replacement
•   Lead water pipe replacement
•   Emergency digs

SERVICE AND SUPPORT ON THE GROUND AND ON THE CLOUD

The quality of our equipment is only matched by the service and support after the sale. Our experts are committed to helping you get the most from your vac equipment so you can focus on getting the job done right. Parts and service centers at the ready to keep you up and running. Expert consultation and training for optimal equipment use, safety and maintenance. Cloud-based access 24/7 to technical information, parts bulletins and warranty information.

TRXX SPECS

Specifications for the TRXX 500 and TRXX 800
Performance Specifications TRXX 500 TRXX 800
Debris Capacity 500 gallon/ 1800 liters 800 gallon / 3028 liters
Water Capacity (standard) 200 gallons / 757 liters 400 gallons / 1514 liters
Engine 49-64 HP Kubota 49-64 HP Kubota
Blower 600 / 1000 CFM 600 / 1000 CFM
Vacuum Rating 15" Hg 15" Hg
Water Pump Volume 5 GPM / 19 LPM 5 GPM / 19 LPM
Water Pump Pressure 3000 psi / 207 BAR 3000 psi / 207 BAR
Length 243 inches / 6.17 meters 269 inches / 6.83 meters
Width 98 inches / 2.49 meters 98 inches / 2.49 meters
Height 103 inches / 2.62 meters 103 inches / 2.62 meters
Weight (empty) 9,000 lbs / 4733 kg 10,000 lbs / 4536 kg
Trailer GVWR 14,000 lbs / 6350 kg 20,000 lbs / 9072 kg
