PEAK PERFORMANCE.   PEAK PRODUCTIVITY.  PEAK PAYLOAD.

image_from_ios-5-1
APXX IS IN A CLASS OF ITS OWN

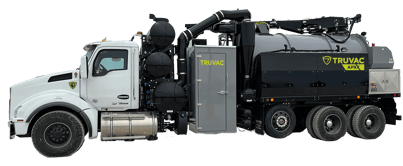

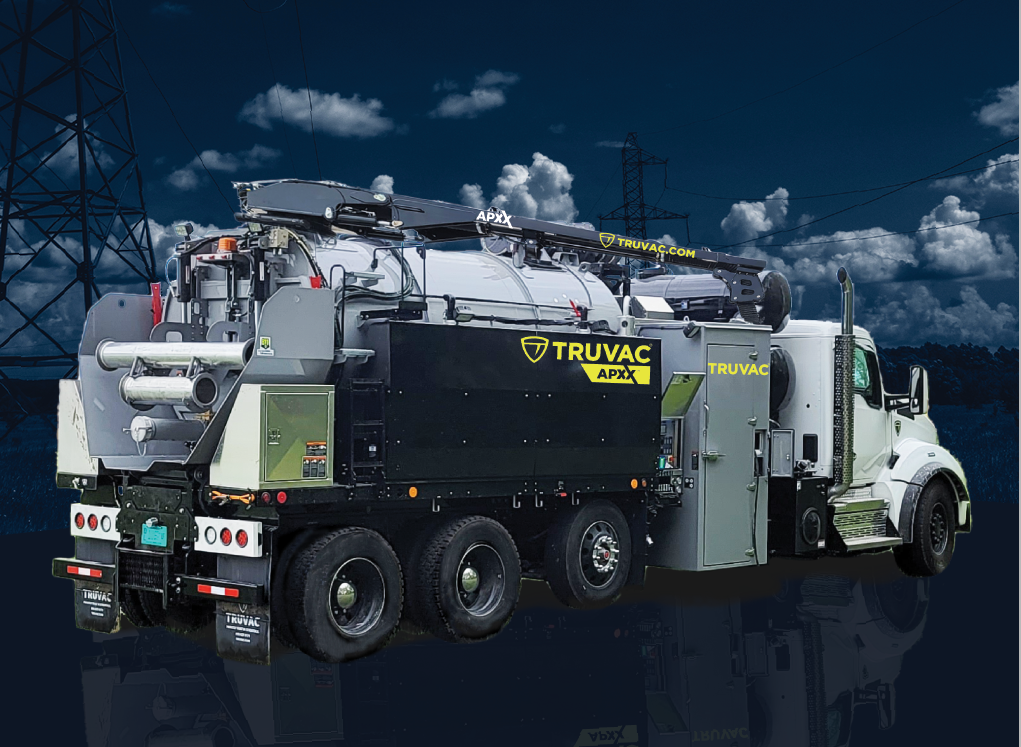

APXX is the peak performer of heavy-duty vacuum excavators. Built to operate in the most rugged climates and environments, it reaches new heights by delivering a combination of standard features that make this machine rise to a class of its own.

Designed with multiple axle options, the APXX is positioned to maximize legal payload and make time on the job more profitable. Operator comfort is second to none, thanks to the standard heated double-walled storage cabinet that provides operators a break and protection from the elements while supporting productivity in cold climates. The quiet operation of the Venturi injection system on the Hibon blower provides state-of-the-art sound reduction technology for operators as they perform vacuum excavation applications.

CAPABILITIES

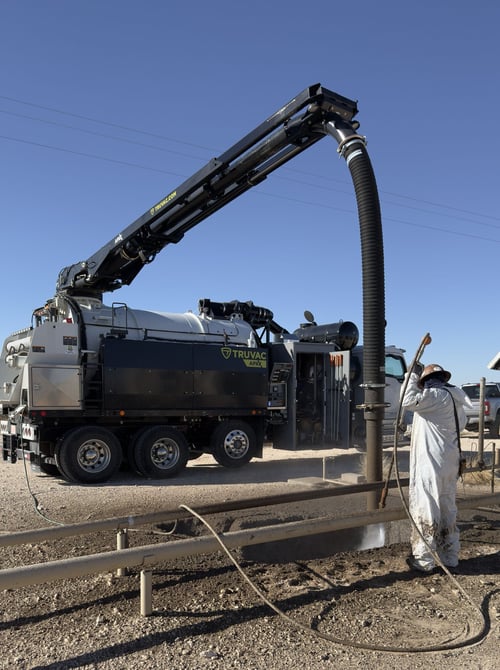

• Hydro Excavation
• Air Excavation
• Potholing/Daylighting to locate underground utilities
• Keyholing for HDD installations
• Slot Trenching
• Cleanup of flood water, drilling spoils, catch basins, construction sites
• Valve box repairs
• Removal of non-hazardous liquids

FEATURES

• 5,250 cfm blower
• Hibon 8702-VS Blower
• Classic style control system
• Large heated cross over water cabinet with tool storage
• Choice of chassis axle configurations
• Debris body vibrator
• 3/4 opening rear door
• 50⁰ debris body dump angle

APXX IS USED FOR APPLICATIONS IN
• Industrial • Railroad
• Gas industry • Airports
• Power industry • Oil fields
• Military • Tunneling
• Environmental • Utilities
• Telecommunications • Nuclear
• Construction • Landscaping
• Water & sewer systems • Road Construction



DOWNLOADS

APXX SPECS

Specifications for the APXX
PERFORMANCE SPECIFICATIONS APXX
Debris Capacity 12 yd standard / 14 yd option
Water Capacity (standard) 1200 Gallons
Blower 5250 cfm
Vacuum Rating 27" Hg
Water Pump Volume 10 gpm std / 20 gpm option
Water Pump Pressure 3000 psi / 207 bar
Length 34’
Width 103.75”
Height 13’ 4”
Weight (empty) 46,320 lbs
STANDARD FEATURES APXX
Back-up camera
7' Extendable Boom
Boom/Body Out of Position Light/Alarm
Heated Cross Cabinet w/ Water Components & Tool Storage
OPTIONS APXX
Air Excavation Package 185 cfm x 175 psi
Water Heater 400/800K BTU
Multiple Axle Configurations Tandem w/ Pusher, Tri-drive, Spiff-23
14 yd debris body
